waterproof, dust and corrosion-resistant led lights (c type)

1. areas with more rain, more humidity and heavier salt spray;

2. a place where the working environment is wet and there is water vapor;

3. the altitude does not exceed 2000m;

4. the working environment contains incombustible dust such as sand dust and dust;

5. the working environment contains corrosive gases such as weak acids and weak bases;

6. applicable to lighting energy-saving renovation projects and places where maintenance and replacement are difficult;

7. as a long-distance floodlighting and street lighting for petroleum, chemical, food, pharmaceutical, military, warehousing and other places.


model implication


features

1. aluminum alloy die-casting shell, the surface is electrostatically sprayed, and the appearance is beautiful;

2. the radiator is stretched from a tensile aluminum alloy material with high thermal conductivity and good heat dissipation effect;

3. optional bracket or street lamp connection sleeve can be selected to meet the lighting needs of various places, and it is easier to overhaul and upgrade.

4. the street lamp design is designed according to the two lanes of the main road of the city, with large illumination area and uniform illumination;

5. stainless steel exposed fasteners with high corrosion resistance;

6. tempered glass transparent cover, atomized anti-glare design, can withstand high energy impact, heat fusion, light transmittance up to 90%;

7. advanced drive power technology, wide voltage input, with constant current, open circuit protection, short circuit protection, surge protection and other functions;

8. multiple international brand led modules, secondary optical distribution system designed by professional optical software, uniform and soft light, light effect ≥120lm/w, high color rendering, long life, green and environmental protection;

9. advanced sealing technology to ensure normal long-term operation in high-protection and humid environments;

10. uniquely designed bracket adjustment mechanism that adjusts the illumination angle as required.

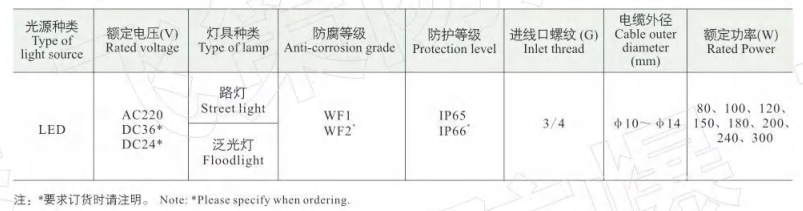

main technical parameters


order note

1. select one by one according to the rules in the meaning of the model specifications, and add the explosion-proof mark after the meaning of the model specification. the specific embodiment is: "product model - specification code protection mark order quantity". for example, it is required to waterproof, dustproof and anti-corrosion led floodlight 100w, bracket type installation, the number of 20 sets, the product model specifications are: "model: sfd-specification: led100bfc ip66 20."

2. see p431~p440 for the selected installation form and accessories.

3. if there are special needs, please specify in the order.
