explosion-proof flexible connecting pipe

1. it is widely used in flammable and explosive gas environment, such as oil extraction, oil refining, chemical industry, offshore oil platform, oil tanker and other flammable dusty places such as military industry, port, grain storage and metal processing.

2. suitable for explosive gas environment zone 1, zone 2;

3. explosive atmosphere: class ⅱa,ⅱb, ⅱc;

4. suitable for combustible dust environment in the area 22, 21;

5. suitable for high protection requirements, damp places.

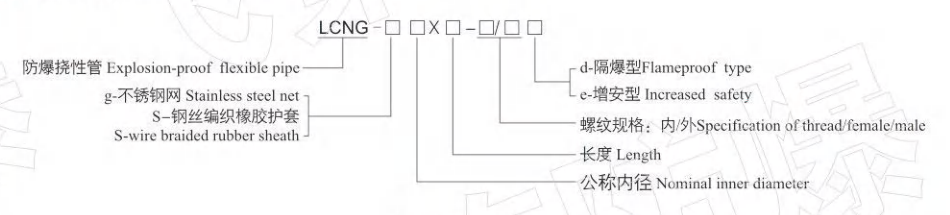

model implication

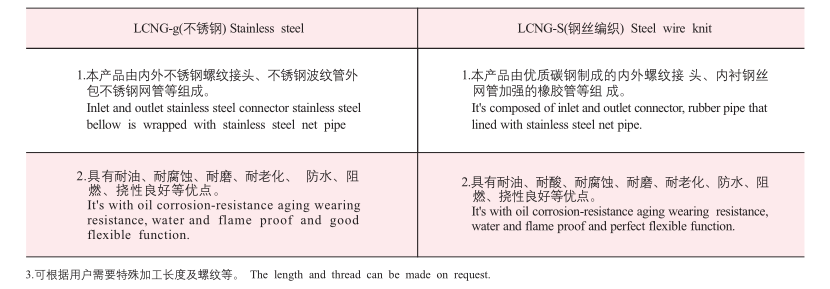

features

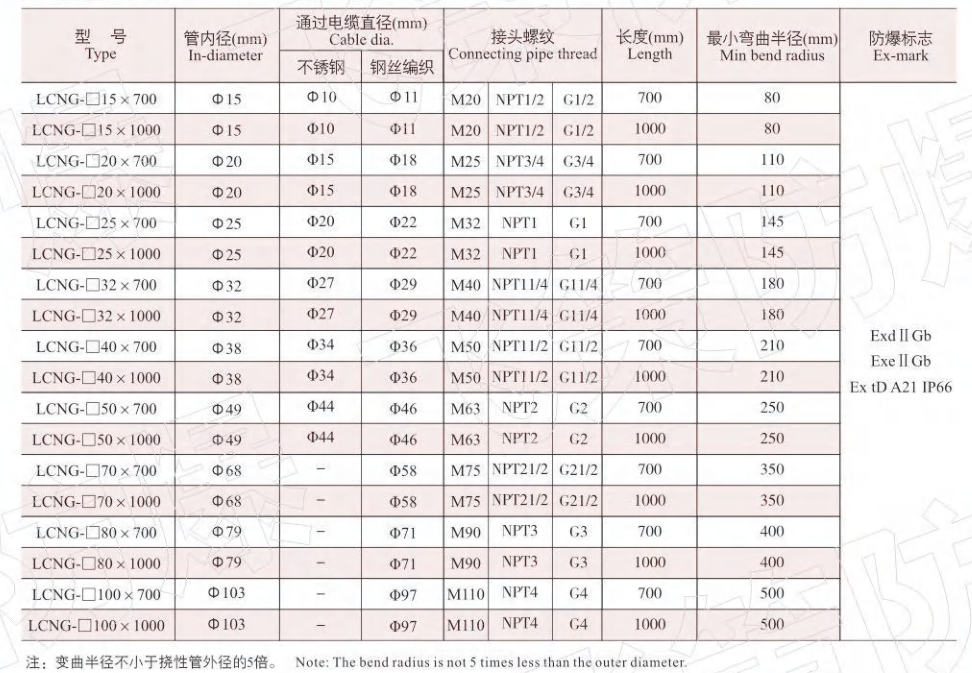

main technical parameters

order note

1. accord with the model implication's rules to select regularly, and ex-mark should be added behind model implication. the template is as following: code for product model implication ex-mark.for example, we need explosion-proof flexible connecting pipe of
stainless steel net,whose pipe diameter is 15mm and length is 1m . the model implication is “lcng-g15*1000-1/2 d exd? gb 20.”

2. if there are some special requirements, it should be pointed as ordering.
