explosion-proof led lights

1.widely used in oil extraction, oil refining, chemical industry, military and other dangerous environment and offshore oil platforms, oil tankers and other places for common lighting and working lighting.

2.suitable for lighting energy saving renovation project and the replacement of difficult places;

3.suitable for explosive gas environment zone 1, zone 2;

4. explosive atmosphere: class ⅱa,ⅱb, ⅱc

5. suitable for combustible dust environment in the area 22, 21;

6. suitable for high protection requirements, damp places;

7. suitable for low temperature environment above -40℃.

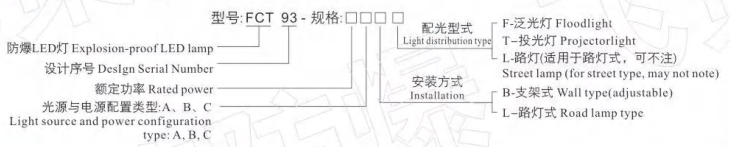

model implication


features

1. aluminum alloy die casting shell, the surface electrostatic spray, beautiful appearance

2. single led explosion-proof modular design unique, can be selected according to the requirements of the special lamp bracket or a connecting sleeve, arbitrarily assembled into cast light lamps, floodlights or lamp, in order to adapt to the lighting needs of various places, more convenient maintenance and upgrade.

3. street light design in accordance with the urban trunk road double lane with light design, large area, uniform illumination

4. explosion-proof, casting compound explosion-proof structure, explosion-proof performance and electrical performance excellence;

5. high corrosion resistance of stainless steel exposed fasteners;

6. toughened glass or polycarbonate transparent cover, fog anti glare design, can withstand high energy shock, heat fusion, light tran- smittance of up to 90%;

7. the driving power of advanced technology, has a wide input voltage, constant current, open circuit protection, short circuit protection, surge protection and other functions;

8. a number of international brands led module, two light distribution system of professional optical design software, even and soft light, the light effect is ≥120lm/w, high color, long life, green environmental protection;

9. open cooling air duct, the effective distribution of light source and power supply heat to ensure that the lamp life;

10. advanced sealing technology to ensure that the protection requirements of high, humid environment normal long-term operation;

11. unique design of the bracket adjustment mechanism can be adjusted according to the requirements of irradiation angle.

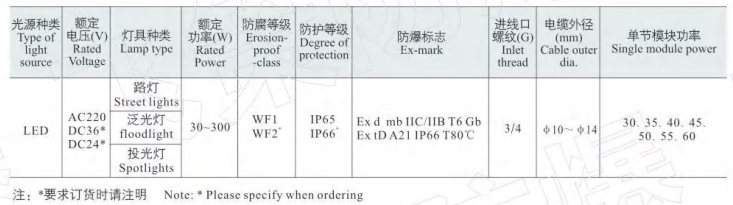

main technical parameters


order note

1. in accordance with the specifications of the meaning of the rules and regulations to choose one by one, and in the model specifications after the increase of explosion-proof mark. concrete expression is: "product model - specification code explosion-proof mark order quantity". such as the need for explosion-proof led floodlights 100w, bracket-mounted, the number of 20 sets, the product model specifications: "model: fct93- specifications: 100bf ex d e mb iic t6 gb 20. "

2. refer to pages p431~p440 for the selected mounting styles and accessories.

3. if there are some special requirements, it should be pointed as ordering.
