explosion-proof high-efficiency energy-saving led lamp (ceiling lamp)

1. widely used in hazardous environments such as oil exploration, refining, chemical, military and offshore oil platforms, oil tankers, etc. general lighting and work lighting use;

2. applicable to lighting energy-saving renovation projects and places where maintenance and replacement is difficult;

3. applicable to zone 1 and zone 2 of explosive gas environment;

4. applicable to iia, iib, iic explosive gas environment;

5. applicable to areas 21 and 22 of flammable dust environment;

6. applicable to places with high protection requirements and humidity;

7. suitable for low temperature environments above -40 °c.

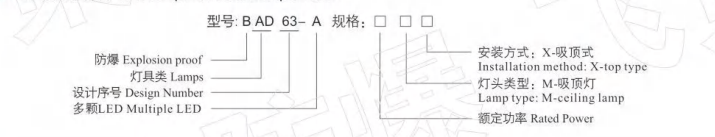

model implication

features

1. aluminum alloy die-casting shell, the surface is electrostatically sprayed, and the appearance is beautiful.

2. it adopts high borosilicate tempered glass transparent cover, transparent cover atomization and anti-glare design, can withstand high energy impact, resist heat fusion, and the light transmittance is up to 90%.

3. stainless steel exposed fasteners with high corrosion resistance.

4. advanced drive power technology, wide voltage input, with constant current, open circuit protection, short circuit protection, surge protection and other functions.

5. configure a number of international brand led modules, advanced light distribution technology, light and even light, light effect 120lm / w, high color rendering, long life, green and environmental protection.

6. the heat-dissipating air guiding groove with air guiding structure can ensure the service life of the led light source.

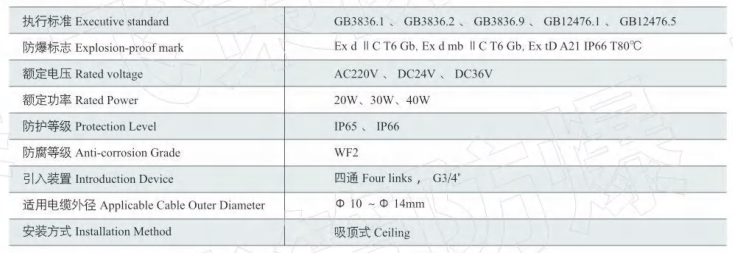

main technical parameters

order note

1. select one by one according to the rules in the meaning of the model specifications, and add the explosion-proof mark after the meaning of the model specification. the specific embodiment is: "product model - specification code explosion-proof mark order quantity". for example, if the explosion-proof encapsulated ceiling lamp 30w is required and the number is 20 sets, the product model specification is: model: bad63-specification: a30x ex d mbiic t6 gb 20.

2. for the selected installation form and accessories, see p431~p440 in the lamp selection manual.

3. if there are special needs, please specify in the order.
