explosion & corrosion-proof power distribution box(electriomagnetics start)

1. it is widely used in flammable and explosive gas environment such as oil exploitation, refining, chemical industry, offshore oil platform, oil tanker, etc. it is also used in flammable dust places such as military industry, port, grain storage and metal processing;

2. applicable to zone 1 and zone 2 of explosive gas environment;

3. applicable to iia, iib, iic explosive gas environment;

4. applicable to areas 21 and 22 of flammable dust environment;

5. applicable to corrosive gases, moisture, and high protection requirements place;

6. applicable to the temperature group is t1 ~ t4;

7. perform overload and short circuit protection on the controlled circuit and use it as lighting (power) switch for each branch line or as a load step-down start and control motor start, stop, forward and reverse.

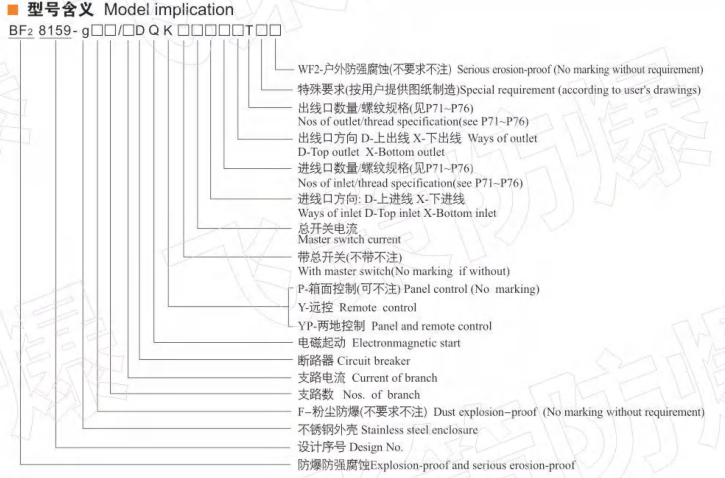

model implication


features

1. the outer casing is made of glass fiber reinforced unsaturated polyester resin, which has beautiful appearance, antistatic, anti-photoaging, corrosion resistance, impact resistance and thermal stability.

2. the patented technology of the combined explosion-proof distribution box independently researched and developed, modularized optimization design and combination of the distribution box, make the whole distribution box structure more compact and better use effect; can be arbitrarily combined with each circuit according to requirements the earth has the configuration requirements for power distribution equipment in different places.

3. the industry's first and most recently developed large-scale flameproof single-circuit breaker module (250a, 100a, 63a ex components) can meet the various specifications of the increased safety enclosure distribution box.

4. all-plastic increased safety type explosion-proof structure, built-in explosion-proof circuit breaker, explosion-proof ac contactor, explosion- proof thermal relay, explosion-proof isolation switch, explosion-proof control button, explosion-proof indicator and other components. the assembled structure between the cabinets can be freely selected.

5. there is a special operating mechanism on the cover plate to achieve full-close operation. padlocks can be added according to requirements to avoid misuse.

6. the main switch and sub-switch operation panels are clearly distinguishable for easy on-site identification.

7. all exposed fasteners are made of stainless steel.

8. cable in and out of the line, according to user requirements can be made up and down, down and down, up and down, down and up and other forms.

9. the inlet and outlet ports are usually made of pipe threads, and the cable clamping and sealing device is arranged. it can also be made into metric thread, npt thread, etc. according to the requirements of the user's site.

10. steel pipes and cable wiring are available.

11. for outdoor use, the rain cover can be configured according to user requirements.

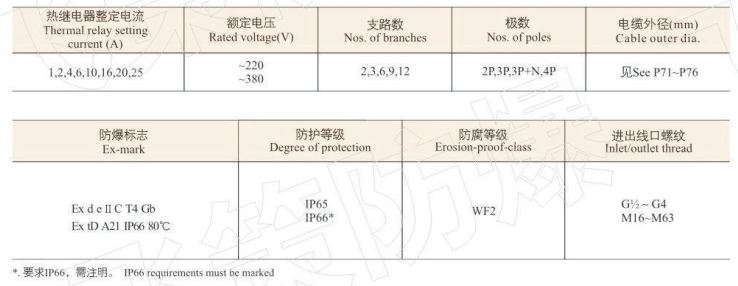

main technical parameters


order note

1. according to the model implication's rules to select regularly, and ex-mark should be added behind model implication;

2. if there are some special requirements, it should be pointed as ordering.
