explosion-proof distribution board

1. it is widely used in flammable and explosive gas environment such as oil exploitation, refining, chemical industry, offshore oil platform, oil tanker, etc. it is also used in flammable dust places such as military industry, port, grain storage and metal processing;

2. applicable to zone 1 and zone 2 of explosive gas environment;

3. applicable to iia, iib, iic explosive gas environment;

4. applicable to areas 21 and 22 of flammable dust environment;

5. applicable to the temperature group is t1 ~ t4 / t5 / t6;

6. for the distribution of lighting or power lines, electrical equipment on-off control or inspection and maintenance distribution.

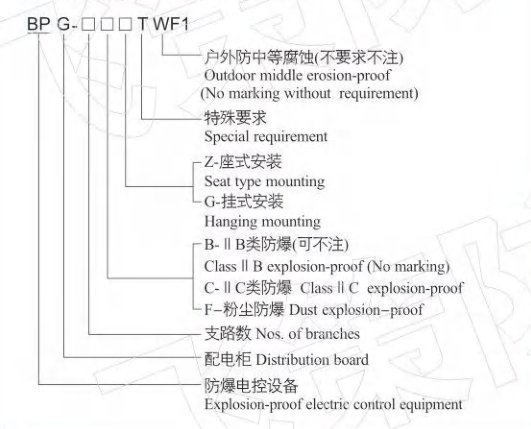

model implication


features

1. shell is made of high qualified steel plate or stainless steel plate welding forming, it is built-in many kinds of explosion-proof apparatus or their combination; eg : explosion-proof power (illumination) distribution box, explosion-proof electromagnetic starter, explosion-proof power maintaining box, explosion- proof power maintaining socket box, etc;

2. the operating ways can be on panel direct or inside operation according to the detail request;

3. can realize monitoring and measurement for the various parameters in circuit , pressure and temperature can be realized by building in various explosion-proof meters or secondary meters;

4. it can satisfy explosion-proof distribution set (electromagnetic starter) with heavy current;

5. two or multi-circuits entry can be converted, by hand or automatically;

6. according to the electric scheme and main technical parameters offered by user, select explosion-proof electrical equipments and, decide the outline dimensions of distribution board, to satisfy user's locale requirement.


main technical parameters

order note

1. please supply the electrical diagram;

2. select the corresponding explosion-proof electrical equipments according to user’s requirements;

3. generally the distribution board is seat type installed. please indicate if there is special requirements.
